皮带剥皮机

皮带剥皮机

简介
Introduction to the belt peeling machine

皮带剥皮机是用来在皮带接头准备时的紧固和清洁剥落传送带头部的胶层,这项操作能够在各种场合及地点使用。

Belt peeling machine is used for the preparation of fastening belt joint and cleaning peeling rubber conveyor belt, the head, this operation can be used in various occasions and locations.

适用范围:651-2200mm各种宽度的普通输送带

Scope of application: 651-2200 - mm all kinds of ordinary conveyor belt width

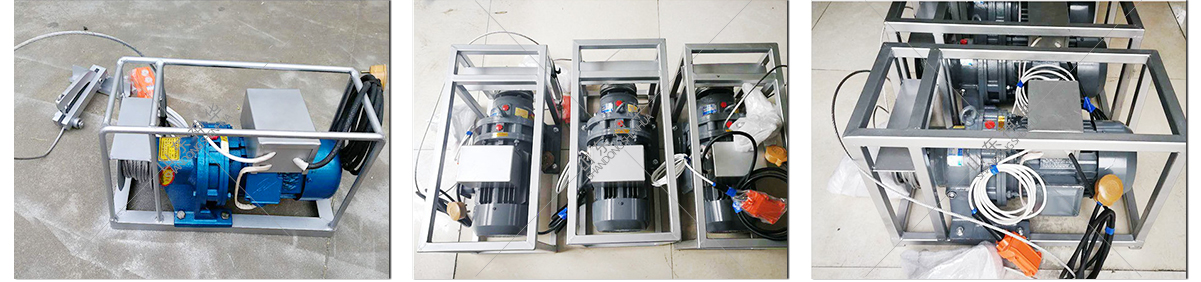

皮带剥皮机专题图片

皮带剥皮机特点

THE CHARACTERISTICS OF
皮带剥皮机

皮带剥皮机使用方法

METHOD OF USE

1、按常规方法将输送带定中线、应将相应的接头处用刀划开、分开第一层;

2、将输送带剥皮机放到适当的位置,并用钢丝绳将其固定好;

3、接通电源;

4、用夹具将分开的第一层夹住,开动电机,并用刀具将剥离部分在适当的地方划开;

5、第一层剥离以后,重复以上相关步骤,分别剥离第二层、第三层等。

1、According to the conventional method puts the conveyor line, corresponding shall open with a knife, should be separated from the first layer ;
2、Put the conveyor belt peeling machine in proper position, and the wire rope should be fixed well ;
3、Connect power supply ;
4、Use the jig will separate the first layer of the clamp, start the motor, and knives to spin off part of slit in proper place ;
5、After the first layer stripping, repeat the above steps, stripping respectively the second, third floor, etc .

皮带剥皮机

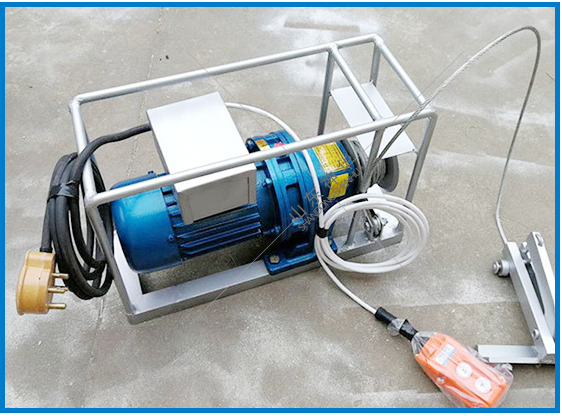

皮带剥皮机结构

STRUCTURE
皮带剥皮机
主机
夹钳
控制盒
电源线
固定孔
拉手
钢丝绳

因产品生产批次、具体型号不同,以上图片仅供参考,详情可联系我们的销售人员进行具体核实

Because the production batches, the different models, the picture is for reference only,Please contact our sales staff for specific verification

皮带剥皮机注意事项

MATTERS NEEDING ATTENTION

接通电源要由专业电工操作

Connect the power supply shall be operated by a professional electrician

使用时应将剥皮机固定好,防止滑动

When using peeling machine should be fixed to prevent slipping

剥离时宽度不要超过相关要求

When strip width does not exceed related requirements

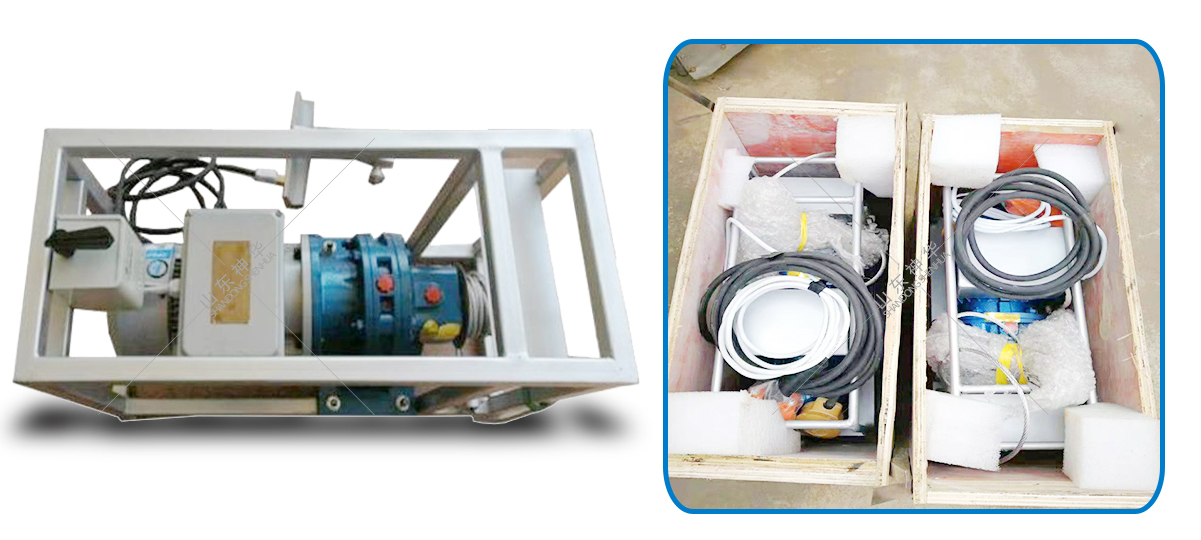

皮带剥皮机专题图片 皮带剥皮机专题图片

皮带剥皮机参数

PARAMETER
